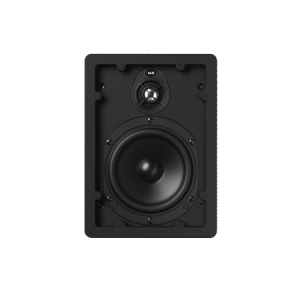

AiW-ARC
In-Wall Speaker
The AiW-ARC is a high-performance, compact in-wall speaker that utilizes a number of NHT technologies in tandem to deliver sound quality well beyond your expectations. Sold as single units rather than speaker pairs, The AiW-ARC is NHT's companion in-wall mount speaker option to the flexible, award-winning Absolute Series speaker collection (i.e. the Absolute Tower, Absolute On-Wall, Absolute Center, and Absolute Zero). The Aiw-ARC works wonders on its own as well. Weather and moisture resistant materials make the AiW-ARC a candidate for outdoor venues, covered patios, and master bathrooms as well traditional placement around the house. The AiW-ARC features NHT's new micro-perforated, bezel-less grill that attaches magnetically and reduces the installed footprint by almost 30% over its predecessor, the iW1.
Specifications
System type
In-wall Loudspeaker
Configuration
2-Way Infinite Baffle
Woofer – 1 x 5.25” polypropylene cone
Tweeter – 1 x 1” aluminum dome
Cabinet Material
Weather resistant - one piece ARC (Anti-Resonant C3asting)
BMC
Finish
Rubberized Paint
Amplifier Power
10W/ch minimum, 100W/ch maximum
Frequency Response
60Hz - 20kHz (±3 dB)
Crossover
2.4 kHz
Crossover Slopes
12dB/oct HP & LP
Sensitivity
86dB
Impedance
7.6 ohms nominal, 4.6 ohms minimum
Inputs
HD nickel-plated spring-loaded type
Product Dimensions
10 inches x 7.25 inches x 3.6 inches
UPC: 898349001365
