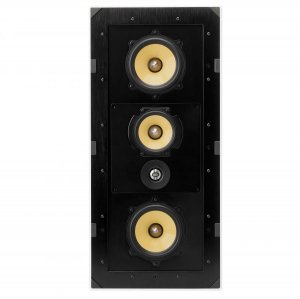

W-LCR2 In-Wall Speaker
The W-LCR2 In-Wall speaker is a true 3-way loudspeaker design employing two of the 5 1/4-inch (135mm) woofers along with a 4-inch (100mm) midrange speaker that seamlessly transitions to the 1-inch (25mm) titanium dome tweeter. The midrange and tweeter are on rotatable sub-assembly to allow for uniform dispersion whether the speaker is oriented vertically or horizontally. The W-LCR2 is fantastic sounding as a center channel with its highly developed midrange driver providing excellent speech intelligibility. The W-LCR2 is also amazingly musical and can easily substitute for a pair of floor-standers in a critical listening room.
Measurements:
(24.2” x 11.1” x 3.75” / 615mm x 282mm x 95mm)
Specifications
Frequency Response
On Axis @ 0°±3dB 65-23,000Hz
On Axis @ 0°±1 1/2dB 70-20,000Hz
LF Cutoff -10dB 50Hz
Sensitivity
Anechoic Chamber 87dB
Listening Room 89dB
Impedance
Nominal 6 Ohms
Input Power/Amplifier Power
Recommended Program Dynamic Peak 20 - 200 Watts 200 Watts
Acoustic Design
Tweeter (Nominal) 1” (25mm) Titanium Dome with Ferrofluid
Midrange (Nominal) 4” (102mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround
Woofer (Nominal) 2 x 5 1/4” (133mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround
Crossover 370Hz, 2200Hz LR4
Internal Volume 0.28 cu ft (6.46L)
Design Type Sealed
Dimensions (W x H x D)
Cutout Dimensions 10 x 23” *(253 x 585mm)
Mounting Depth 3 3/4” (95mm)
Grille Dimensions 11 1/2 x 24 5/8 x 3/8” *(292 x 624 x 7mm)
