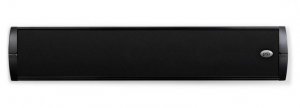

Imagine W1 On-Wall Speaker
Ultra-Slim Single-Channel Flat-Panel Speaker
The poor audio quality of today's ultra-thin flat panel TVs is a well-known drawback that cries out for an attractive solution. The PSB Imagine W1 On-Wall speaker is engineered specifically for this application, combining an extremely low profile form with renowned PSB sound.
Flexible Options
The Imagine W1 is a single channels speaker that can be oriented either vertically or horizontally and be used as a front left, right, centre or surround channel speaker. Multiple Imagine W1 models can formulate a complete system or the speakers can be combined with other PSB In-room or In-ceiling speakers to create a customized Home Theatre solution. Included is a sturdy wall-mount bracket as well as a tabletop stand. At 3 inches (75mm) deep these speakers hug the wall, integrating perfectly with popular flat panel TV sizes. The M1 can flank the TV to the left and right, and can also be oriented horizontally below the screen as a centre channel.
Connect an AV Receiver and prepare to be amazed at the clarity of voices and the spacious sound stage that perfectly integrates sound with the large high definition TV picture. From action movies and games with their high impact sound tracks to the subtle atmospheric effects of the dramatic thriller, the PSB Imagine W1 speakers make the picture come to life.
Specifications
FREQUENCY RESPONSE (Anechoic Chamber)
On Axis @ 0° ± 3dB 90 - 23,000Hz
On Axis @ 0° ± 1 1/2dB 100 - 20,000Hz
Off Axis @ 30° ± 1 1/2dB 100 - 10,000Hz
LF Cutoff -10dB 70Hz
SENSITIVITY (1W (2.83V) @ 1M, IEC-Filtered pink noise, C-weighted)
Anechoic Chamber 87dB
Listening Room 89dB
Impedance
Nominal 8 Ohms
Minimum 6 Ohms
Input Power (RMS, Clipping <10% Time)
Recommended Program 10-80 Watts 60 Watts
Acoustic Design
Tweeter (Nominal) 1” (25mm) Titanium Dome with Ferrofluid
Woofer (Nominal) 2 x 4” (102mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround
Crossover 2300Hz LR4
Internal Volume 0.10 ft3 (2.9 Litres)
Design Type Passive Radiator
Size (W x H x D) 27 9/16 x 5 1/2 x 3 1/4” (700 x 140 x 82mm) (horizontal)
