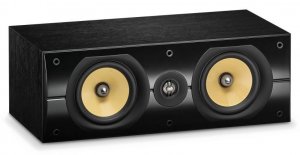

Imagine XC Center
Clean lines and slim cabinet
As a two-way system in a dual-woofer horizontal format with a pair of 5 1/4" woofers, this centre channel is engineered to maximize performance in multi-channel systems. Its clean lines and slim cabinet design will suit today’s ultra flat TVs. We matched this carefully in timbre with the other Imagine X models for ultimate flexibility when setting up your home cinema system.
Specifications
Frequency Response (Anechoic Chamber)
On Axis @ 0°±3dB 50-23,000Hz
On Axis @ 0°±1 1/2dB 65-20,000Hz
Off Axis @ 30°±1 1/2dB 65-10,000Hz
LF Cutoff -10dB 45Hz
Sensitivity (1W (2.83V) @ 1M, IEC-Filtered pink noise, C-weighted)
Anechoic Chamber 88dB
Listening Room 90dB
Impedance
Nominal 8 Ohms
Minimum 4 Ohms
Input Power (RMS, Clipping <10% Time)
Recommended Program 20 - 150 Watts 150 Watts
Acoustic Design
Tweeter (Nominal) 1” (25mm) Titanium Dome with Ferrofluid Neodymium Magnet
Woofer (Nominal) 2 x 5 1/4” (133mm) Injection Moulded Clay/Ceramic reinforced Polypropylene Cone Rubber Surround Dual Magnet
Crossover 1,800Hz, LR4
Internal Volume 0.58 cu ft (16.4L)
Design Type Bass Reflex Front Port
Size (W x H x D) 19 1/8 x 6 3/4 x 11 1/8” 485 x 170 x 280mm
