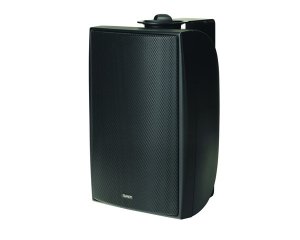

DVS 8
The DVS 8 is based around a point-source driver design comprising a 8” mid bass driver with a coaxially mounted 19mm (0.75”) high frequency section mounted in a stylish injection moulded surface-mount enclosure manufactured from UV/weather resistant ABS material. The new device is certified for water and dust ingress protection to IP64 standard and is currently pending UL Listed status (UL-1480 and UL-2043) making it a perfectly capable performer in challenging interior areas such as swimming pools, saunas or work areas… Read More
Features
200mm (8”) coaxial transducer for high performance and durability
80 degree controlled conical dispersion for optimum coverage
Exceptional performance to value ratio
Weather resistant rated IP64 to EN60529 (IEC529)
Stylish, durable ABS enclosure available in black or white
Phase coherent design for superior vocal articulation and music reproduction
No crossover required, ensuring better phase, impedance and sensitivity response and increased durability
Painted steel yoke bracket supplied
Five year loudspeaker warranty
Low insertion loss 60 W transformer for use in distributed audio installations (DVS 8t only)
Specifications
Frequency Response (-3dB) (1) 75Hz – 20kHz
Frequency Range (-10dB) (1) 60Hz – 30kHz
System Sensitivity (1W @ 1m) (2) 90dB
Dispersion (degrees conical) 80
Transducers Coaxial
Low Frequency: 200mm (8.0") mineral loaded cone material
High Frequency: 20mm (0.79")
Crossover 3.4kHz - 2nd order LF, 2nd order HF
Directivity Factor (Q) 12.3 averaged 1kHz to 10kHz
Directivity Index (DI) 10.0 averaged 1kHz to 10kHz
Rated Maximum SPL (2) Average: 108dB
Peak: 114dB
Power Handling Average: 70W
Programme: 140W
Peak: 280W
Recommended Amplifier Power 140W @ 6 Ohms
Nominal Impedance 6 Ohms
Distortion
10% Full Power (6.48V)
250Hz
1kHz
10kHz
2nd Harmonic 3rd Harmonic
0.891% 0.217%
0.235% 0.643%
0.666% 0.093%
Distortion
1% Full Power (2.05V)
250Hz
1kHz
10kHz
2nd Harmonic 3rd Harmonic
0.236% 0.192%
0.051% 0.409%
0.217% 0.081%
CONSTRUCTION
Enclosure ABS
Grille Aluminium
Connectors
Euroblock type removable locking connector with screw terminals with "loop through" facility
Transformer settting
Rotary switch
Supplied Accessories Yoke bracket
Dimensions (H x W x D) 451.8 x 290.0 x 296.0mm
(17.78" x 11.42" x 11.65")
TRANSFORMER VERSION specifications as above except:
Transformer Taps (rear rotary switch) 60W / 30W / 15W / 7.5W / OFF & Low Impedance operation
60W / 30W / 15W / OFF & Low Impedance operation
UPC: 5035866167517
