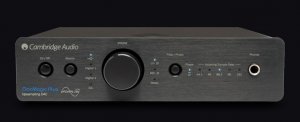

DacMagicPlus
Digital to Analogue Converter & Preamplifier
The DacMagic Plus has fantastic new features including wireless device connectivity and stunning audio performance from music of all formats. Thanks to twin DACs it instantly improves audio fidelity from all your favourite digital products allowing you to make your computer, TV, Blu-ray player and other devices a true part of your hi-fi system.
PURE PROCESS
The DacMagic Plus works by taking a direct digital audio signal from your computer, TV or other device - bypassing their built-in digital to analogue converters.
This signal is then carefully analysed and upgraded using our ATF2 upsampling system. Once this process is complete, the DacMagic Plus outputs your music as a much purer analogue signal straight to your amplifier.
Custom developed by our dedicated team in the heart of London, DacMagic Plus is totally flexible and supports digital music of all formats. It even allows you to upgrade 24-bit music files stored on your PC for better-than-CD performance from your digital music collection.
Watch the video above to find out why our proprietary ATF2 upsampling technology makes such a difference to the sound produced by our DACs.
WIRELESS CONNECTIVITY
By linking our plug-and-play BT100 wireless audio receiver to the DacMagic Plus, you can also stream music wirelessly from your smartphone, tablet, laptop or any gadget that supports Bluetooth*. Additionally, if your device supports the superior aptX CODEC Bluetooth encoding, you can stream lossless CD quality music from your device to the DacMagic Plus.
*Optional BT100 audio receiver required
ADDITIONAL SERVICES
As well as controlling and playing music that’s stored on your computer or smartphone, streaming services like Spotify and Last FM can be shared with your hi-fi in stunning quality.
Specifications
Digital to analogue convertersDual Wolfson WM8740 24-bit DACs
Digital filterAnalog Devices ADSP21261 DSP; upsampling to 24-bit/384kHz
Analogue filter2-Pole Dual Differential Bessel Double Virtual Earth Balanced
Frequency response20Hz to 20kHz (±0.1dB)*
THD @ 1Khz 0dBFs<0.001% 24-bit
THD @ 1kHz -10dBFs<0.001%
THD @ 20kHz 0dBFs<0.002%
Signal to Noise Ratio-112dBr
Total correlated jitter<130pS
Crosstalk @ 1kHz< -130dB
Crosstalk @ 20kHz< -112dB
Output impedance<50 Ohms
Max. output level (unbalanced)2.1V rms
Max. output level (balanced)4.2V rms (2.1V per phase)
Digital input word widths supported16-24bit
Digital input sampling frequencies supported32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz**, 192kHz
Audio output upsamplingFixed 24-bit/384kHz
Max power consumption12W
ColourBlack or silver
Dimensions (HxWxD)52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)
*Steep filter disabled
**Digital 1 & 2 Inputs only
Headphone output
THDat 1kHz 0dBFS 24-bit signal with 22kHz low pass filter = 0.001%
at 20khz 0dBFS 24-bit signal with 80kHz low pass filter = 0.003%
S/N-111dBrA
Frequency response10Hz - 100kHz
Recommend headphone impedance 32 Ohm to 600 Ohm.
