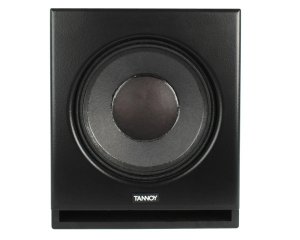

Definition SUB 12i
The Definition Install DS12i sub has been designed to underpin a Definition install theatre or media room system with truly remarkable low frequency performance.
Massively constructed around 300mm (12.00”) professional drive unit, this subwoofer will produce the ultimate soundtrack experience, with spectacular and thunderous bass, yet still be agile enough to maintain finer musical detail with precision and speed.
Features
1 x 300mm (12”) high power handling direct radiating bass driver
Immensely rugged 38 litre MDF enclosure is internally braced, with 15mm (0.62") panels and a 36mm (1.37”) front baffle
Power handling 800W programme
Sensitivity 94dB (1W = 2.83V for 8 Ohms)
Rated SPL 126dB peak
2 x binding post connectors, 8 x M10 inserts and
4 x rubber feet
Specifications
Frequency Range 1 38 Hz
System Sensitivity (1W @1m) 2 94dB (1W = 2.83V for 8 Ohms)
Dispersion (-6dB) 90 degrees conical
Driver Complement 1 x 300mm (12.00”) bass driver
Rated Maximum SPL Average: 120dB
Peak: 126dB
Power Handling Average: 400W
Programme: 800W
Peak: 1600W
Recommended Amplifier Power 400W - 800W @ 8 Ohms
Recommended Crossover 80Hz - 300Hz, 24dB/octave
Recommended High-pass filter 40Hz, 24dB/octave
Nominal Impedance 8 Ohms
Distortion 10% Full Power (17.9V)
2nd Harmonic
40Hz: 0.28%
100Hz: 0.29%
3rd Harmonic
40Hz: 2.26%
100Hz: 0.60%
1% Full Power (5.6V)
2nd Harmonic
40Hz: 0.19%
100Hz: 0.13%
3rd Harmonic
40Hz: 0.39%
100Hz: 0.02%
Construction
Enclosure 38 litres, front baffle 36mm (1.37") other panels 15mm (0.62") MDF internally braced.
Finish Black paint.
Connectors 2 x Binding posts
Fittings 8 x M10 inserts
4 x Rubber feet
Dimensions (HxWxD) 435mm x 370mm x 355mm
(17.10 x 14.60” x 14.00”)
UPC: 750408388025
