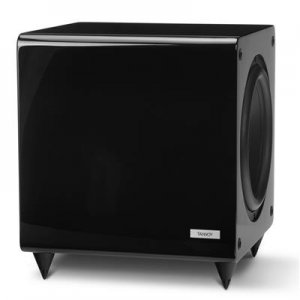

TS2.10 Subwoofer
The TS2.10 is the entry level active subwoofer in Tannoy’s innovative and powerful TS2 range. These compact domestic subwoofers draw on Tannoy’s extensive professional and stadium loudspeaker design experience to deliver class-leading low frequency drama and thunderous bass effects. Designed to excel in speed and power, each model uses a powerful digital amplifier and two large, long-throw drivers to output extremely fast and deep bass. The design allows considerable LFE output from a compact cabinet, making the TS2 range ideal for a wide range of home cinema systems.
Inside the double-thickness cabinet the TS2 range uses the latest class-D digital amplifiers, running in highly efficient bridge mode, delivering up to 500Watts RMS of deep bass power. Replacing traditional analogue filter networks, the TS2’s high-speed Digital Signal Processing (DSP) engine handles bass management and all user adjustments. These include simple rotary controls for roll-off frequency, phase and gain, making the TS2 subwoofers as simple to set-up and as they are potent to use. An auto power on/off feature eliminates the need to access the TS2’s controls once set up and further ensures the most power-efficient operation.
Specifications
Performance
Output power 300 W RMS
Low frequency response (-6 dB) 24 Hz
Inputs 2 x phono line level, LFE or stereo
Outputs 2 x phono line level, LFE or stereo
Input filter 50 - 150 Hz, 2nd order low pass, with bypass provision
Driver type 10" (250 mm) active & passive ABR
Enclosure type Closed box, side firing
Enclosure volume 23.1 litre (0.82 cu. ft.)
Additional features Variable phase control 0 - 180 degrees
Signal sensing or always on operation
Dimensions H x W x D 390 x 380 x 328 mm (15.4 x 15 x 13")
