S/5
The Serie S Flagship

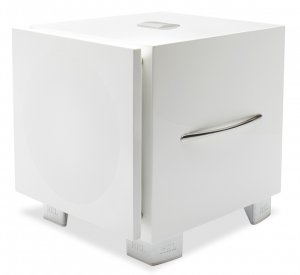

The Majestic S/5
S/5 exceeds the mandate for mid-level models and crosses this model into true reference quality. S/5 produces exceptionally low bass with tremendous impact and speed. Even difficult-to-render instruments such as pipe organs are dealt with effortlessly.Large scale, high end 2-channel systems make a perfect pairing for S/5 and grand theaters are ideal. Medium to grand rooms are appropriate. Scale is Very Large, Speed is Exceptional, Attack and Slam is Visceral.
Smooth Speed & Slam
Continuous Cast™ Cone Bass Engine
S/5’s driver features an all-new alloy cone structure that takes our mid-level product to a performance that exceeds our reference products of only a few years ago. By reducing moving mass, with a balanced approach to design, our engineering team was able to produce far more speed than prior designs. By carefully adjusting key parameters, we were able to increase the self-quieting key to a high end component’s ability to resolve space and inner detail. Improvements in our designs translate into enhancement in your entire system.
Sound Beyond Its Size
Carbon Passive Radiator
S/5 uses a special carbon/carbon passive that is stiff, lightweight and incredibly well-behaved. Our approach to passive design results in performance more akin to a variable ratio driver size. On an S/5, think of it as a sliding ratio design wherein the S/5 begins as an ultra-fast 12” sealed box design and, as more power and deeper bass is demanded, the S/5 gradually morphs into the power and output of a 15” design.
Fast, Extended Lows
NextGen2 550W Digital Amplifier
Beyond our proprietary drivers, the performance of a REL is determined by our unique input filters and amplifiers. REL S/5 uses a simple filter-type that is very fast—about 8 milliseconds in group delay– to cross out unwanted higher frequencies to our driver. This speed and our carefully sorted filters allow for seamless blending of RELs with the main speakers. REL do not include a high pass filter to cross out bass from the main speaker because to do so would generally produce more unwanted effects than the minor benefits such a design confers.
S/5’s power amplifier is a powerful NextGen2 550W digital amplifier. This design has powered thousands of RELs and has proven exceptionally reliable and very fast with deep, extended lows—it provides a perfect mate to our new driver.
Freedom
LongBow™ Wireless Connectivity
LongBow permits very fast, uncompressed bass to be sent wirelessly within the same room approximately 45 feet (somewhat dependent upon room clutter). We have selected an un compressed format as it results in natural, quick delivery compared with conventional wi-fi or Bluetooth systems. Because it is a REL, we developed LongBow with both high level (or low level with crossover intact) AND .1 channel delivery so that REL Theatre Reference performance can be maintained even when using our wireless delivery system.
Specifications
Type: Front-firing active woofer, down-firing passive radiator
Active Drive Unit: 12 in., 300mm long-throw, Continuous Cast Alloy™cone structure, cast chassis
Passive Radiator:12 in., 300mm
Lower Frequency Response in Room: 20Hz at -6 dB
Input Connectors: Hi Level Neutrik Speakon, Left and Right Lo Level phono, LFE phono, SMA for wireless antenna
Gain Control Range: 80 dB
Power Output:550 watts (RMS)
Phase Switch: Yes, 0 or 180 degrees
Amplifier Type: NextGen2 Class D
REL Longbow Wireless capability:Yes – REL Longbow™ transmitter [required],
Sold separately
Fully Electronic with LimitlessTM Limiter Yes
D.C. Fault: Yes
Output Short: Yes
Mains Input Voltage: 220-240 volts, 110-120 volts for certain markets
Fuses (semi delay): 5 Amp 220 volts operation 10 Amp 120 volts operation
Dimensions (W x H x D)*: 17.5 x 18 x 20 in., (444.5 x 455.5 x 507 mm)
UPC: 638865856984
