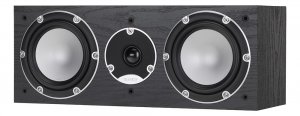

Mercury 7C Center Speaker
The seventh generation of Tannoy’s best-selling loudspeaker range is celebrated with a fresh new style that stands out from the budget loudspeaker crowd. A new luxury wood-grain effect finish, in a choice of Walnut, Light Oak or Black Oak, allows Mercury 7 to harmonise with any room decor, while dark cloth grilles add a clean and sophisticated style.
Remaining faithful to Mercury’s heritage as the most versatile of budget loudspeaker ranges, the Mercury 7C is a dedicated centre channel loudspeaker voice matched to other models in the Mercury 7 range. Compact enough to fit in smaller TV cabinets yet potent enough to match the impressive Mercury 7.4 floorstander, this horizontal loudspeaker packs two 127mm (5.00") mid/bass drivers and the Mercury 7 series 28mm (1.10”) tweeter in a rear-ported 6.2 litre cabinet.
Easily integrated into a basic 5.1 channel surround sound system using Mercury 7.2 at the front and Mercury 7.1 at the rear, the Mercury 7C delivers crystal clear dialogue and focused central vocals for multichannel music. Its 240 Watt peak power handling and 91dB/watt efficiency mean it is equally suited to potent Mercury 7 surround sound set-up using Mercury 7.4 at the front and multiples pairs of Mercury 7.1 or 7.2 at the sides and rear of the listening room. Its 32Hz upper frequency extension makes Mercury 7C capable of getting the best from High Resolution multichannel audio while its 62Hz bass response is an ideal match for typical AV receiver bass management systems.
Specifications
Performance
Recommended amplifier power (Watts RMS) 20 - 120
Continuous power handling (Watts RMS) 60
Peak power handling (Watts) 240
Sensitivity (2.83 Volts @ 1m) 91 dB
Nominal Impedance (Ohms) 8
Frequency response (-6 dB) 62 Hz - 32 kHz
Drive Units
Dual Concentric High frequency 28 mm (1.1") Nitro-urethane damped layer woven polyester dome, neodymium magnet system
Dual Concentric Low frequency 127 mm (5") Multi- fibre coated pulp paper cone x 2
Crossover
Crossover Frequency 3.5 kHz
Crossover Type Passive low loss 2nd order low pass, 3rd order high pass
Construction
Enclosure type Twin rear ported reflex
Volume 6.2 l (0.22 cu. ft)
Dimensions (H x W x D)
(inc plinth) 160.0 x 420.0 x 167.3 mm
(6.3 x 16.5 x 6.6")
UPC: 5035866865628
