CS500 Universal In-Outdoor Speakers
Think Outside The Box
Don’t be restricted to your living room or den for rewarding hi-fi experiences. Enjoy every ounce of acoustic performance found in PSB's in-room speakers with the new compact, all-weather CS500 Universal/Outdoor speakers. It's time to add PSB’s world-renowned “true-to-nature” sound quality to your outdoor living space. Engineered and designed for open spaces, the CS500 will also add PSB's high performance sound to commercial environments, such as retail stores, restaurants, hotels, and fitness centres. The CS500's compact size will serve a wide range of applications, especially where space is tight.
Ready for Duty

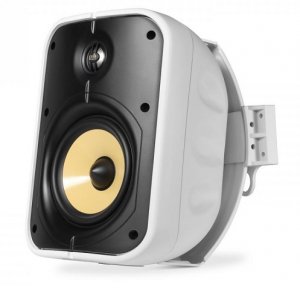

OutDoor Speaker - CS500
If we Canadians know one thing, it's how to handle extreme weather. The CS500's compact, weatherproof construction includes a UV-resistant polypropylene cabinet, aluminium grille, and rustproof terminals with a rubber cover for added protection against the wrath of Mother Nature. The CS500's tough construction will also provide protection against the rigours of commercial use.
Small and Flexible
Offering multiple mounting options for all outdoor and commercial installations, the CS500's compact and versatile design allows you to fit the speaker in almost any nook and cranny. It is equipped with a unique dual-axis rotational mounting bracket system that allows for vertical or horizontal mounting, and either 90° or 170° rotation.
Real Sound
With unmatched, lifelike sound quality, the CS500's bass response will move you without compromising full range reproduction of your music. The CS500 further cements PSB Speakers reputation for building speakers that deliver real sound for real people.
Features
Weatherproof
Fully Flexible Bracket System for vertical and horizontal mounting and dual-axis rotation
Range of Rotations - 90° in one plane, and 170° in second plane
Rubber Cover for terminals
Highly-damped/low-resonance UV-resistant, thick-walled Polypropylene Enclosure
Extensive Internal Enclosure Ribbing for stiffness
Painted Aluminium Grille
Paintable Enclosure and Grille
Gold-plated 5-way Binding Posts
Specifications
FREQUENCY RANGE Response
On Axis @ 0°±3dB 63-23,000Hz
On Axis @ 0°±1 1/2dB 65-20,000Hz
Off Axis @ 30°±1 1/2dB 65-10,000Hz
LF Cutoff -10dB 50Hz
SENSITIVITY
Anechoic Chamber 85dB
Typical Listening Room 87dB
IMPEDANCE
Nominal 8 Ohms
Minimum 6 Ohms
INPUT POWER
Recommended Program 20-120 Watts 120 Watts
ACOUSTIC DESIGN
Tweeter 1” (25mm) Titanium Dome with Ferrofluid Neodymium Magnet
Woofer 5 1/4” (135mm) Clay/Ceramic filled injection moulded Polypropylene Cone Rubber Surround
Crossover 1,800Hz, LR4
Internal Volume 0.2 cu ft (5L)
Design Type Sealed
SIZE 7 5/8 x 10 1/2 x 8” 192 x 266 x 203mm
