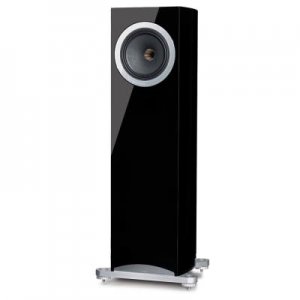

Definition DC10A
It embodies TANNOY's core tenets of musical reproduction: A single point source Alnico Dual Concentric driver, straight path fully Deep Cryogenically Treated crossover and TANNOY's signature birch-ply cabinet construction.
The DC10A delivers the engaging and articulate sound of TANNOY’s classic Prestige models with the luxurious contemporary style of the Definition series. The Definition DC10A is a thoroughly modern loudspeaker, hand built and rich with traditional values.
The DC10A’s newly developed 10 inch Dual Concentric driver is powered by Alcomax 3 Alnico motors to deliver a sweet, natural and inherently coherent sound. Famed for delivering a sweet, natural and inherently coherent sound, Alnico powered drivers have long been the preferred choice of discerning musicians. From jazz and blues to folk and rock music, the Alnico sound is consistently rich and engaging, delivering realism rarely achieved by ferrite ceramic drivers. A new multi-fibre cone material has been developed specifically for the DC10A to realise the very best from the Alnico magnet system and the HF driver is fitted with the latest iteration of TANNOY’s famous Pepperpot WaveGuide.
Specifications
PERFORMANCE
Recommended amplifier power
(Watts RMS) 30 – 300
Continuous power handling
(Watts RMS) 150
Peak power handling (Watts) 600
Sensitivity (2.83 Volts @ 1m) 93 dB
Nominal Impedance (Ohms) 8
Frequency response (-6 dB) 28 Hz – 22 kHz
Dispersion (degrees conical) 90
DRIVE UNITS
Dual Concentric™ high frequency 51 mm (2”) Aluminium alloy dome. Alnico magnet system with Pepperpot Waveguide™
Dual Concentric™ low frequency 250 mm (10”) treated paper pulp cone with twin roll impregnated fabric surround.
52 mm (2”) edge wound voice coil, Alnico magnet system
CROSSOVER
Crossover frequency 1.1 kHz
Crossover type Bi-wired, hard wired passive low loss 2nd order LF, 2nd order compensated HF, Cryogenically treated
CABINET
Enclosure Type Twin Rear ported
Volume 103 L (3.64 cu. ft.)
Dimensions (H x W x D)
inc plinth & grille 1135 x 345 x 438 mm
(44.69 x 13.58 x 17.24”)
