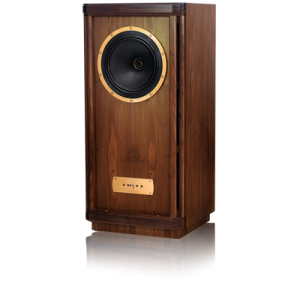

Stirling GR
This compact floorstanding loudspeaker is rich with the timeless styling, bespoke cabinetry and the truly engaging performance from its new Dual Concentric Gold Reference driver that can trace its history back to 1967.
The Stirling GR crossover benefits from a widespread component upgrades including highest quality capacitors designed to TANNOY’s exacting specification. The entire crossover board undergoes Deep Cryogenic Treatment, a technique TANNOY developed for the flagship Kingdom Royal project. This improves the crystal structure of not only the components and cabling on the hard-wired crossover-board but throughout the contacts and solder joints leading to a smoother and more natural presentation.
The Stirling GR cabinet is hand built from the finest plywood using traditional joinery methods to ensure that attention to detail and unique styling go hand in hand. A distributed port design for exemplary LF response from the 85 litre enclosure, the cabinet is finished in Prestige oiled real walnut wood veneer and complimented with solid walnut trim and edging, machined metal trim and adjustable HF power.
Capable of handling peak input power of up to 340 watts and boasting prodigious 91 dB efficiency, the Stirling has the power and authority of much larger and more affluent loudspeakers. It is detailed, dynamic and outstandingly articulate sound with all the musical cohesion inherent with the Dual Concentric driver. Stirling GR offers the bespoke cabinetry and remarkable performance of TANNOY’s Prestige series, yet costs no more than a typical mass produced loudspeaker.
Specifications
PERFORMANCE
Recommended amplifier power 20 -170 Watts
Continuous power handling 85 Watts RMS
Peak power handling 340 watt
Sensitivity 91dB (2.83 Volts @1 metre)
Nominal impedance 8 Ohms
Minimum Impedance 5 ohm
Frequency Response 39 Hz - 46 kHz (-6 dB)
Dispersion 90 degrees conical
DRIVE UNITS
Dual Concentric™ high frequency 25mm (1.00”) aluminium/magnesium alloy dome with edge wound voice coil
Dual Concentric™ low frequency 254mm (10.00") with paper pulp cone with twin roll impregnated fabric surround. 42mm (15/8") edge wound voice coil
CROSSOVER
Frequency 1.8kHz
Type Bi-wired, hard wired passive, low loss 2nd order low pass, 2nd order high pass
Adjustment /- 3dB over 1.8 kHz to 46 kHz shelving
CONSTRUCTION
Enclosure type Dual Distributed Port
Volume 85L (3 cu.ft)
Dimensions 850 x 397 x 368mm
(33.50 x 15.50 x 14.50”)
