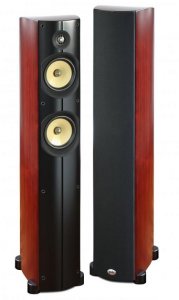

Imagine T Tower
Elegant Cabinet, Outstanding Sonic Performance
The Imagine T Tower Speaker is destined to become the standard of value among audio and home-theatre fans for whom real-world sonic performance is the benchmark of excellence. The Imagine T Tower Speaker is one of four new models from PSB Speakers. Compound-curved on every vertical face, and outstanding sonic performance makes this speaker (and the Imagine Series in general) a real "Class Leader".
Specifications
Frequency Response (Anechoic Chamber)
On Axis @ 0°±3dB 38-23,000Hz
On Axis @ 0°±1 1/2dB 42-20,000Hz
Off Axis @ 30°±1 1/2dB 42-10,000Hz
LF Cutoff -10dB 35Hz
Sensitivity (1W (2.83V) @ 1M, IEC-Filtered pink noise, C-weighted
Anechoic Chamber 88dB
Listening Room 90dB
Impedance
Nominal 8 Ohms
Minimum 4 Ohms
Input Power (RMS, Clipping <10% Time)
Recommended Program 20 - 200 Watts 200 Watts
Acoustic Design
Tweeter (Nominal) 1” (25mm) Titanium Dome with Ferrofluid Neodymium Magnet
Woofer (Nominal) 2 x 5 1/4” (133mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround
Crossover 1,800Hz, LR4, 800Hz
Internal Volume 1.0 cu ft (29L)
Design Type Dual Port Bass Reflex
Size (W x H x D) 8 3/8 x 37 1/4 x 13 5/8” 210 x 945 x 346mm
