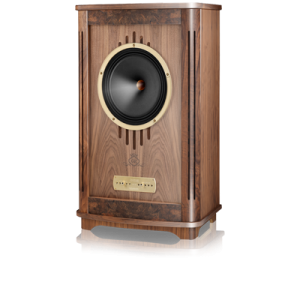

Canterbury GR
The new 15 inch Gold Reference driver is TANNOY’s most powerful and articulate Dual to date, boasting an incredible 600 watt peak power handling and offering over 96dB efficiency in the 235 litre Canterbury GR cabinet.
The legendary 15 inch Dual has been upgraded extensively for the Gold Reference series with many of the enhancements being ‘trickle-down’ technology from TANNOY’s flagship Kingdom Royal development project. The low frequency section of the GR driver has a new fibre enriched paper pulp cone material to realise further improvements in the cone’s mechanical characteristics. The cone is terminated with a twin roll surround of impregnated fabric for improved damping characteristics. The Canterbury GR’s HF unit marks a significant leap forward in the technology and performance comprising a new aluminium-magnesium alloy compression driver diaphragm that has been heat treated to further improve it mechanical integrity under HF loads. The use of new Mylar surround materials offer improved damping and motor cooling, resulting in exceptional clarity and articulation throughout the HF range. Capable of high-volume listening without fatigue, the Gold Reference Dual brings even greater naturalness and presence to the TANNOY Canterbury loudspeaker.
Specifications
PERFORMANCE
Recommended amplifier power 20 - 300 Watts
Continuous power handling 150 Watts RMS
Peak power handling 600 watt
Sensitivity 96 dB (2.83 volt @ 1 m)
Nominal impedance 8 Ohms
Minimum Impedance 5 Ohms
Frequency Response 28 Hz - 27 kHz (-6 dB)
Dispersion 90 degrees conical
DRIVE UNITS
Dual Concentric™ high frequency 52 mm (2”) aluminium/magnesium alloy dome with round wire voice coil.
Dual Concentric™ low frequency 380 mm (15”) with paper pulp cone and twin roll impregnated fabric surround.52 mm (2”) round wire voice coil.
CROSSOVER
Frequency 1.1kHz
Type Bi-wired, hard wired passive, low loss, Time compensated. 2nd order low pass. 2nd order high pass.
Adjustment +/-3 dB over 1.1 kHz to 27 kHz shelving
2 dB to -6 dB per octave over 5 kHz to
27 kHz slope
CONSTRUCTION
Enclosure type Dual variable distributed ported
Volume 235 L (8.3 cu.ft)
Dimensions 1100 x 680 x 480mm
(43.50 x 26.75 x 19.00”)
