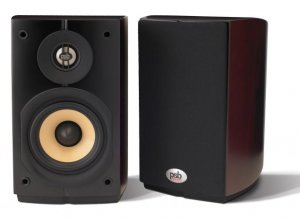

Imagine mini
Small Speaker... BIG Sound
Meet the newest and smallest member of the ultra-stylish Imagine Series of speakers. The deceptively small Imagine mini speaker makes a big impact on an already impressive range of award-winning Imagine speakers. With its high-performance and compact size, the mini is as versatile as it is cute.
These Imagine minis have might!
The mini produces a large soundstage and impressive bass along with the true- to-nature sound for which PSB is known. our engineers designed the crossover frequency very low relative to the woofer size in order to provide the same sound no matter where the speaker is placed. The mini is a two-way design with 4-inch woofer, 1-inch titanium dome tweeter with ferrofluid, and rear port bass reflex. The result is startlingly big and commanding sound with fine detail and emotion.
Fits in anywhere.
Measuring just 5.75” wide x 9.25” high x 8.3” deep, the mini integrates well as part of a multi-channel or home theatre Imagine system or as a practical desktop system. But don’t let it end there. The mini’s clean detailed bass makes it ideal as a primary system for urban spaces. And it’s perfectly on trend for modern decors.
Specifications
Frequency Response (Anechoic Chamber)
On Axis @ 0°±3dB 55-23,000Hz
On Axis @ 0°±1 1/2dB 65-20,000Hz
Off Axis @ 30°±1 1/2dB 65-10,000Hz
LF Cutoff -10dB 50Hz
Sensitivity (1W (2.83V) @ 1M, IEC-Filtered pink noise, C-weighted
Anechoic Chamber 85dB
Listening Room 87dB
Impedance
Nominal 8 Ohms
Minimum 4 Ohms
Input Power (RMS, Clipping <10% Time)
Recommended Program 10 - 80 Watts 60 Watts
Acoustic Design
Tweeter (Nominal) 1” (25mm) Titanium Dome with Ferrofluid Neodymium Magnet
Woofer (Nominal) 4” (102mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround
Crossover 2,200Hz, LR4
Internal Volume 0.1 cu ft (2.8L)
Design Type Bass Reflex
Size (W x H x D) 5 3/4 x 9 1/4 x 8 3/8” 143 x 234 x 212mm
