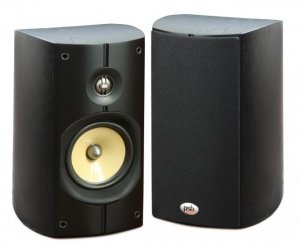

Imagine B Bookshelf
Expressive Voice, Superb Balance
The Imagine B Bookshelf Speakers is the little brother to the Imagine T Tower Speaker, although not so little when it comes to the detail these speakers can bring out of your favourite music. Not only is this speaker an amazing performer, it has the looks to back it up. Every vertical face of the Imagine B is elegantly curved to make this speaker - and by extension the whole Imagine lineup - some of the best looking speakers you will ever see.
Specifications
Frequency Response (Anechoic Chamber)
On Axis @ 0°±3dB 52-23,000Hz
On Axis @ 0°±1 1/2dB 55-20,000Hz
Off Axis @ 30°±1 1/2dB 55-10,000Hz
LF Cutoff -10dB 48Hz
Sensitivity (1W (2.83V) @ 1M, IEC-Filtered pink noise, C-weighted
Anechoic Chamber 87dB
Listening Room 89dB
Impedance
Nominal 8 Ohms
Minimum 4 Ohms
Input Power (RMS, Clipping <10% Time)
Recommended Program 20 - 150 Watts 150 Watts
Acoustic Design
Tweeter (Nominal) 1” (25mm) Titanium Dome with Ferrofluid Neodymium Magnet
Woofer (Nominal) 5 1/4” (133mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround
Crossover 1,800Hz, LR4
Internal Volume 0.27 cu ft (7.7L)
Design Type Bass Reflex
Size (W x H x D) 7 1/2 x 12 7/8 x 12 1/8” 190 x 324 x 305mm
