Revolution XT 6

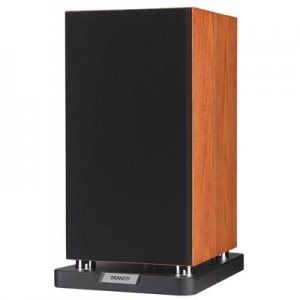

The Revolution XT 6 is a mid-size stand or bookshelf mounted loudspeaker that represents a ‘purist’ Tannoy configuration. Using a single Omnimagnet Dual Concentric driver, the XT 6 delivers pure point-source articulation and realises the additional smoothness and bass extension of the new driver design. Combining a 150mm (6.00”) multi-fibre cone with a 25mm Linear PEI dome and benefitting from the Torus-Ogive waveguide the Revolution XT 6 driver is coupled with a crossover using low loss laminated core inductors and audiophile components throughout.
The 10.8 litre cabinet has Revolution XT’s signature trapezoid shape and is uniquely fitted with a miniature plinth in keeping with the larger floorstanding models. The plinth serves to add low-down mass to the design, affording highly stable placement on stands or shelves for the most accurate acoustic reproduction. Heavily constructed and extensively braced, the cabinet has exceptionally low colouration further enhancing its ability to communicate nuances and emotion of music. The Revolution XT 6 is an incredibly accurate mini-monitor for those who appreciate music presented with utmost detail and texture.
Available in Medium Oak or Dark Walnut real wood veneer, the Revolution XT 6 sets the standard for fit and finish for stand mount loudspeakers at the price. The highest attention to detail means artisan-quality veneering, etched Omnimagnet driver trims, heavy duty terminals and a full-baffle grille with magnetic mounts to ensure a flawless look with the grilles off.
Specifications
PERFORMANCE
Recommended Amplifier Power
(Watts RMS) 25 - 120
Continuous Power Handling
(Watts Peak RMS) 60
Peak Power Handling (Watts) 240
Sensitivity (2.83 Volts @ 1m) 89 dB
Nominal Impedance (Ohms) 8
Frequency Response (-6dB) 46 Hz - 32 kHz
DRIVE UNIT
Dual Concentric™ High Frequency 25 mm (1”) Linear PEI dome with Torus Ogive WaveGuide and Omnimagnet technology
Dual Concentric™ Low Frequency 150 mm (6”) multi-fibre paper 44 mm (1.75”) voice coil
Bass Driver -
CROSSOVER
Crossover Frequency 1.8 kHz
Crossover Type Passive low loss 2nd order low pass, 1st order high pass
CONSTRUCTION
Enclosure Type Downwards ported reflex
Volume 10.8 l (0.38 cu. ft.)
Dimensions H x W x D
(incl. plinth) 400.5 x 221 x 302 mm
(15.8 x 8.7 x 11.9”)
UPC: 5035866864706
