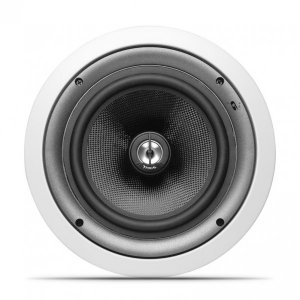

Custom IC 108-T
With its 8"(21cm) fibreglass woofer, 91dB sensitivity, and very high power handling, the IC 108 recreates a large, powerful sound, capable of properly playing in rooms of very large dimensions. Ready to be painted. Also available in T version (100V).
Specifications
Max. power 140W
Nominal power (100V) 30W (30 - 20 - 10W)
Sensitivity at 1W/30W (at 1kHz, 1m) 90dB/105dB
Bandwidth (± 3dB) 50Hz - 20kHz
Opening angle (at 1kHz/4kHz, -6dB) 165°/180°
Nominal power 100 Volts
Nominal impedance 300/450/900 ohms (30/20/10W)
Passive crossover cut-off frequency 3 300Hz
Drivers 81/4"(21cm) glass fiber woofer/midrange
913/16"(25mm) aluminum inverted dome adjustable tweeter
Frame dimensions (diameter) 111/8 " (282mm)
Cut-out dimensions (diameter) 911/16" (246mm)
Cut-out depth 41/3" (110mm)
Color White
UPC: 889951000372
