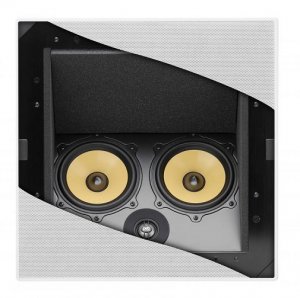

C-LCR In-Ceiling Speaker
The C-LCR In-Ceiling speaker uses the same driver complement but places the drivers on an angled baffl e in a deeper box to allow proper dispersion required to create a nice three-dimensional sound stage when recessed into the ceiling. As expected from PSB, these are very musical sounding speakers.
Measurements:
(14.4” x 14.4” x 8” / 366mm x 366mm x 203mm)
Specifications
Frequency Response
On Axis @ 0°±3dB 65-23,000Hz
On Axis @ 0°±1 1/2dB 70-20,000Hz
LF Cutoff -10dB 50Hz
Sensitivity
Anechoic Chamber 88dB
Listening Room 90dB
Impedance
Nominal 6 Ohms
Input Power/Amplifier Power
Recommended Program Dynamic Peak 20 - 150 Watts 150 Watts
Acoustic Design
Tweeter (Nominal) 1” (25mm) Titanium Dome with Ferrofluid
Woofer (Nominal) 2 x 5 1/4” (133mm) Clay/Ceramic reinforced Polypropylene Cone Rubber Surround
Crossover 1750Hz, LR4
Internal Volume 0.36 cu ft (10.24L)
Design Type Sealed
Dimensions (W x H x D)
Cutout Dimensions 13 3/16 x 13 3/16” *(335 x 335mm)
Mounting Depth 7 3/4” (196mm) *
Grille Dimensions 14 3/4 x 14 3/4 x 3/8” *(373 x 373 x 7mm)
