CMS 603DC

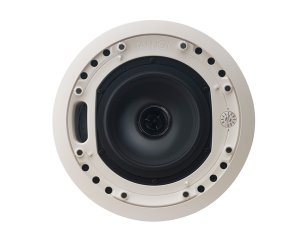

The Tannoy CMS 603DC is a full bandwidth, high power-handling and high sensitivity loudspeaker built around CMS 3.0 – the third generation of Tannoy’s revolutionary Ceiling Monitor System technology. Based on an all-new evolution of Tannoy’s proprietary Dual Concentric point-source driver, the CMS 603DC has been fundamentally re-engineered to deliver wider and more consistent broadband directivity, even greater intelligibility, and a more accurate and linear response.
The new Dual Concentric driver design features… Read More
Features
Advanced new Dual Concentric driver design utilizing Omnimagnet technology
Torus Ogive Waveguide device for improved broadband directivity
Tight, uniform 90-degree dispersion pattern for high-ceiling applications
Improved time alignment and phase coherence, delivering even better sonic performance
High power and high sensitivity with extended frequency response and very low distortion
Improved LF performance for applications where genuine bottom-end is a must
Low insertion-loss, 60 watt line transformer for a more powerful and dynamic performance
Convenient front-tapping switch for settings
Magnetically-adhering grille system for easy custom painting and optional Arco designer grilles for minimal architectural impact
Four-clamp self-aligning system
UV resistant baffle and grille
Specifications
Frequency Response (-3dB) (1) 75 Hz - 30 kHz
Frequency Range (-10dB) (1)
BM back can model 50 Hz - 30 kHz
Frequency Range (-10dB) (1)
PI fitted with back can 46 Hz - 30 kHz
System Sensitivity (1W @1m) (2) 91 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Power Handling (3) Average: 80W
Programme: 160W
Peak: 320W
Recommended Amplifier Power 160 W @ 16 ohms
Nominal Impedance (Lo,Z) 16 Ohms
Rated Maximum SPL Average: 110dB
Peak: 116dB
Transformer Taps (via front rotary switch) 70V: 60 W (83 O) / 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / OFF & low impedance operation
100V:60 W (165 O) / 30 W (330 O) / 15 W (660 O) / OFF & low impedance operation
TRANSDUCERS
Dual Concentric point source driver 1 x 165 mm (6.5”) Dual Concentric driver, using Omnimagnet technology
Low Frequency 44 mm (1.75”) voice coil, treated multi fiber paper pulp cone
High Frequency 25 mm (1.00”) PEI dome
PHYSICAL
Enclosure Backcan: Zinc plated steel
Baffle: Reflex loaded UL 94V-0 rated ABS
Grille: Steel, with weather resistant coating
Safety Features Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design Security toggle clamp
Min / Max clamping range 9.5 mm (0.37”) /
60 mm (2.36”)
Recommended clamp torque: 1.5 Nm
Blind Mount (BM) Complete with fixed backcan
Pre Install (PI) Separate backcan for pre-installation
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22 mm
Conduit Knockouts on PI Backcan 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75” / 0.87” / 1.10”)
Connectors Removable locking connector with screw terminals with “loop through” facility
Dimensions
Bezel diameter 274.0 mm (10.79”)
BM Model: Front of ceiling to rear of backcan 255.8 mm (10.07”)
BM Model: Front of ceiling to top of safety loop 273.3 mm (10.76”)
PI Model: Front of ceiling surface to rear of speaker unit 100.7 mm (3.96”)
PI Model: Front of accessory backcan bezel to top of safety loop 168.5 mm (6.60”)
Hole cutout diameter (all models) 253 mm (9.96”)
UPC: 5035866174409
