CMS 403DCe

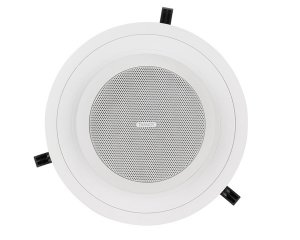

The Tannoy CMS 403DCe is a full bandwidth, high power-handling and high sensitivity loudspeaker built around CMS 3.0 – the third generation of Tannoy’s revolutionary Ceiling Monitor System technology. Based on an all-new evolution of Tannoy’s proprietary Dual Concentric point-source driver, the CMS 403DCe has been fundamentally re-engineered to deliver wider and more consistent broadband directivity, even greater intelligibility, and a more accurate and linear response.
The new Dual Concentric driver design features… Read More
Features
Advanced new Dual Concentric driver design utilizing Omnimagnet technology
Torus Ogive Waveguide device for improved broadband directivity
Tight, uniform 90-degree dispersion pattern for high-ceiling applications
Improved time alignment and phase coherence, delivering even better sonic performance
High power and high sensitivity with extended frequency response and very low distortion
Improved LF performance for applications where genuine bottom-end is a must
Low insertion-loss, 30 watt line transformer for a more powerful and dynamic performance
Convenient front-tapping switch for settings
Three-clamp, self-aligning mounting system
UV resistant baffle and grille
Specifications
Frequency Response (-3dB) (1)
BM Backcan
110 Hz - 50 kHz
Frequency Range (-10dB) (1)
BM Backcan 80 Hz - 54 kHz
System Sensitivity (1W @1m) (2) 88 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Power Handling (3) Average: 60W
Programme: 120W
Peak: 240W
Recommended Amplifier Power 120 W @ 16 ohms
Nominal Impedance (Lo,Z) 16 Ohms
Rated Maximum SPL Average: 106 dB
Peak: 113 dB
Transformer Taps (via front rotary switch) 70V: 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / 3.75 W (1320 O) / OFF & low impedance operation
100V:30 W (330 O) / 15 W (660 O) / 7.5 W (1320 O) / OFF & low impedance operation
TRANSDUCERS
Dual Concentric point source driver 1 x 100 mm (4.0”) Dual Concentric driver, using Omnimagnet technology
Low Frequency 35 mm (1.38”) voice coil, treated multi fiber paper pulp cone
High Frequency 20 mm (0.79”) PEI dome
PHYSICAL
Enclosure Backcan: Reflex loaded UL 94V-0 rated ABS
Baffle: Reflex loaded UL 94V-0 rated ABS
Grille: Steel, with weather resistant coating
Safety Features Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design Min / Max clamping range: 0.0 mm (0.0”) /
20.0 mm (0.79”)
Recommended clamp torque: 1.5 Nm
Blind Mount (BM) Complete with fixed backcan
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22 mm
Conduit Knockouts on PI Backcan 3 Sets of horizontal positions 19 / 22 / 28 mm (0.75” / 0.87” / 1.10”)
Connectors Removable locking connector with screw terminals with “loop through” facility
Dimensions
Bezel diameter 205.0 mm (8.07”)
Front of ceiling to rear of pod 147.6 mm (5.81”)
Hole cutout diameter 187 mm (7.36”)
UPC: 5035866174102
