CMS 403ICTe

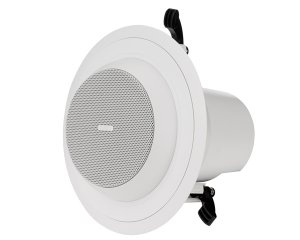

The Tannoy CMS 403ICTe is a wide bandwidth, high power-handling and high sensitivity loudspeaker built around CMS 3.0 – the third generation of Tannoy’s revolutionary Ceiling Monitor System technology. Incorporating a newly refined version of Tannoy’s proprietary ICT™ point-source driver, the CMS 403ICTe has been re-engineered for optimum compatibility with Lab.gruppen commercial amplifiers while also delivering consistent broadband directivity, precise articulation for voice and music, and exceptional long-term… Read More
Features
Newly refined 100 mm (4.0”) ICT transducer for greater durability and longevity
High power & high sensitivity with extended frequency response
Wide, controlled, constant directivity dispersion for optimum coverage
Does not suffer from energy loss in the vertical plane at crossover as with two-way discrete designs
Low insertion-loss, 30 W line transformer for a more powerful and dynamic performance
Convenient front-tapping switch for settings
Adjustable tilt angle with 360-degree rotation to accomodate difficult loudspeaker placements
Three-clamp, self-aligning mounting system
UV resistant baffle and grille
Specifications
Frequency Response (-3dB) (1)
110 Hz - 22 kHz
Frequency Range (-10dB) (1)
80 Hz - 24 kHz
System Sensitivity (1W @1m) (2) 88 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle 90 degrees conical
Coverage Angle (1 kHz to 6 kHz) 120 degrees conical
Directivity Factor (Q) 5.26 averaged 1 kHz to 6 kHz
Directivity Index (DI) 6.30 averaged 1 kHz to 6 kHz
Power Handling (3) Average: 50 W
Programme: 100W
Peak: 200 W
Recommended Amplifier Power 100 W @ 16 ohms
Nominal Impedance (Lo,Z) 16 Ohms
Rated Maximum SPL Average: 105 dB
Peak: 111 dB
Transformer Taps (via front rotary switch) 70V: 30 W (165 O) / 15 W (330 O) / 7.5 W (660 O) / 3.75 W (1320 O) / OFF & low impedance operation
100V:30 W (330 O) / 15 W (660 O) / 7.5 W (1320 O) / OFF & low impedance operation
Crossover 7 kHz inductively coupled
TRANSDUCERS
Low Frequency 35 mm (1.38”) voice coil, treated multi fiber paper pulp cone
High Frequency 20 mm (0.79”) PEI dome
PHYSICAL
Enclosure Backcan: Reflex loaded UL 94V-0 rated ABS
Baffle: Reflex loaded UL 94V-0 rated ABS
Grille: Steel, with weather resistant coating
Safety Features Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design Min / Max clamping range: 0.0 mm (0.0”) /
20.0 mm (0.79”)
Recommended clamp torque: 1.5 Nm
Connectors Removable locking connector with screw terminals with “loop through” facility
Compliance UL-1480, UL-2043, CE
Dimensions
Bezel diameter 205.0 mm (8.07”)
Front of ceiling to rear of pod 147.6 mm (5.81”)
Hole cutout diameter 187 mm (7.36”)
UPC: 5035866174102
