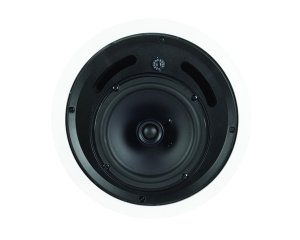

CVS 4
The compact, small footprint CVS 4 is a 100mm (4") full bandwidth blind mount model, specifically designed for all applications requiring the combination of excellent sonic quality for music and speech reinforcement,exceptional reliability and most critically - affordability.
The CVS 4 is supplied with an integral zinc-plated steel back can, with recessed termination box, the removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping… Read More
Features
Coaxially mounted 100mm (4") mineral loaded woofer with rubber surround and 19mm (0.75") soft dome diffraction loaded tweeter
High power & high sensitivity with extended frequency response and very low distortion
Wide, controlled constant directivity dispertion for optimum coverage
UV/weather resistant UL94V-0 ABS front baffle
Easily accessible tapping switch on front baffle
Low insertion loss 30 W line transformer
Ferrofluid cooled neodymium HF
Packaged with tile rails and C-ring for quick & easy installation and simple stocking logistics
Specifications
Frequency Response (-3dB) (1) 85Hz - 19kHz
Frequency Range (-10dB) (1) 77Hz - 22kHz
System Sensitivity (1W @1m) (2) 87dB (1W = 2.45V for 6 Ohms)
Nominal Coverage Angle 90 degrees conical
Coverage Angle (1kHz to 6kHz) 102 degrees conical
Directivity Factor (Q) 5.6 averaged 1kHz to 6kHz
Directivity Index (DI) 7.1 averaged 1kHz to 6kHz
Rated Maximum SPL Average: 103dB
peak: 109dB
Power Handling (3) Average: 40W
Programme: 80W
Peak: 160W
Recommended Amplifier Power 80W @ 6 Ohms
Nominal Impedance 6 Ohms
Transformer Taps (via front rotary switch) 70V: 30W / 15W / 7.5W / 3.75W / OFF & low impedance operation
100V: 30W / 15W / 7.5W / OFF & low impedance operation
Crossover 2.7kHz
TRANSDUCERS
Low Frequency 100mm (4.00") mineral loaded cone
High Frequency 19mm (0.75") coaxially mounted
PHYSICAL
Enclosure Back Can: Zinc plated steel
Baffle: UL 94V-0 rated ABS
Grille: Steel, with weather resistant coating
Safety Features Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design Security toggle clamp
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22mm
Connectors Removable locking connector with screw terminals with "loop through" facility
Safety Agency Ratings
UL-1480, UL-2043, CE
Hole Cutout Diameter 180mm (7.09")
Dimensions Bezel diameter: 213.0mm (8.39”)
Front of ceiling to rear of back can: 202.5mm (7.97”)
Front of ceiling to top of safety loop: 214.90mm (8.46")
UPC: 750408387936
