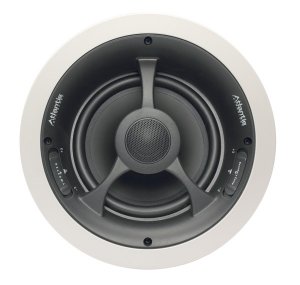

ICTS-6 HT
The In-Ceiling Speaker that Excels in the Starring Role
Top quality front channel theater speaker, hidden in the ceiling
The ICTS-6 HT uses a heavy-duty 6 1/2inch woofer that is angled 15 degrees towards the listening area, and Atlantic's exclusive 1" Low Resonance Tweeter that handles more of the sound spectrum than any other in-ceiling speaker for unmatched sound coverage. Front mounted Boundary Compensation and Tweeter level controls ensure ideal sound wherever they're mounted.
The unique Boundary Compensation Control reduces the undesirable build-up of mid-bass frequencies when the speaker is placed too close to a side wall.
Specifications
Model ICTS-6 HT
Outer Diameter 9 5?8" (244mm)
Cutout Diameter 8" (202mm)
Mounting Depth 5 1/16" (128mm)
Frequency Response 45 – 20kHz, +/- 3dB
Woofer 6 1/2" (165mm) Polypropylene
Tweeter 1" (25mm) LRT™ silk dome
Nominal Impedance 6 ohms
Crossover Frequency 2.3kHz
Sensitivity (1 watt/1 meter) 88dB
Recommended Power 10 – 125 Watts RMS
