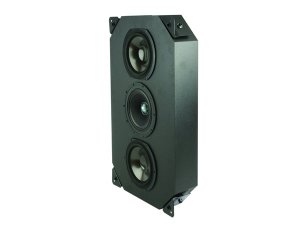

iW63 DC
The high power handling iw63 DC will excel in any in wall application but is primarily designed to be used in left, centre or right locations in home theatre or media room applications.
At 91dB (1W = 2.83V for 8 Ohms) the Dual Concentric™ driver in the speaker is very sensitive and therefore capable of high output levels, tremendous dynamics and stunning detail in both music and movie applications in vast array of listening and viewing environments. From media rooms to home theatre and boardrooms through to high end marine…
Features
165mm (6.50”) high sensitivity, point source and constant directivity Dual Concentric™ drive unit (music mode)
Two 100mm (6.50”) Dual Concentric™ drive units in dipole configuration (cinema mode)
Constant time delay over the frequency spectrum
Exceptional transient performance
90 degree conical dispersion (music mode 120 degrees horizontal by 90 degrees (cinema mode)
Superior harmonic alignment
Natural, clean and integrated sound
Enhanced intelligibility, sound staging and dynamics
Recommended amplifier power 100 to 200W @ 8 Ohms
Sensitivity 90dB (1W = 2.83V for 8 Ohms)
Maximum SPL 117dB average
Rugged construction MDFclosed enclosure, internally braced and finished with textured black paint
Isolation mounting system minimises energy transfer to the wall material
Optional pre-installation frame available
Specifications
Frequency Range 1 54Hz - 40kHz
System Sensitivity (1W @1m) 2 91dB (1W = 2.83V for 8 Ohms)
Nominal Coverage Angles 90 degrees conical
Coverage Angle (1kHz to 6kHz) 120 degrees
Directivity Factor (Q) 3.5 averaged 1kHz to 6kHz
Directivity Index (DI) 5.5 averaged 1kHz to 6kHz
Rated Maximum SPL Average: 111dB
Peak: 117dB
Power Handling Average: 100W
Programme: 200W
Peak: 400W
Recommended Amplifier Power 100 - 200W @ 8 Ohms
Crossover 320Hz, 1.5kHz
Nominal Impedance 8 Ohms
Distortion 10% Full Power (8.94V)
2nd Harmonic
250Hz: 0.18%
1kHz: 0.89%
8kHz: 1.30%
3rd Harmonic
250Hz: 0.08%
1kHz: 1.05%
8kHz: 0.18%
1% Full Power (2.83V)
2nd Harmonic
250Hz: 0.90%
1kHz: 0.39%
8kHz: 0.54%
3rd Harmonic
250Hz: 0.38%
1kHz: 0.61%
8kHz: 0.55%
Transducers
Low Frequency 2 x 165mm (6.50") woofers
Mid and High Frequency 1 x 165mm (6.50”) constant directivity Dual Concentric™
Construction
Enclosure 11.5 litre, closed and internally braced MDF enclosure with integral isolation mounting system
Finish Textured black paint
White powder coated perforated steel grille with foam behind
Connectors Gold plated spring terminals
Dimensions (HxWxD) 590 x 345 x 94 mm
(23.23 x 13.58 x 3.70")
UPC: 750408387998
