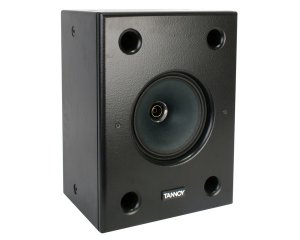

DC8i
Designed to be used in left, centre or right locations the DC8i brings audiophile performance to both music and movie applications in vast array of listening and viewing environments.
Built around the unique high sensitivity Tannoy Dual Concentric™ drive unit, the Definition Install range brings class leading accuracy, detail and dynamics to installation applications ranging from media rooms to home theatre and boardrooms through to high end marine interiors.
Features
200mm (8”) high sensitivity, point source and constant directivity Dual Concentric™ drive unit
Constant time delay over the frequency spectrum
Exceptional transient performance
90 degree conical dispersion
Superior harmonic alignment
Natural, clean and integrated sound
Enhanced intelligibility, sound staging and dynamics
Recommended amplifier power 100 to 200W @ 8 Ohms
Sensitivity 92dB (1W = 2.83V for 8 Ohms)
Maximum SPL 119dB average
Rugged construction MDF enclosure, vented, internally braced and finished with textured black paint
Multiple hanging options
Specifications
Frequency Range 1 62Hz - 45kHz
System Sensitivity (1W @1m) 2 92dB (1W = 2.83V for 8 Ohms)
Dispersion (-6dB) 90 degrees conical
Driver Complement 1 x 200mm (8.00”) constant directivity Dual Concentric™
Crossover Passive 1.7kHz with dynamic HF protection
Directivity Factor (Q) 5.7 averaged 1kHz to 10kHz
Directivity Index (DI) 7.0 averaged 1kHz to 10kHz
Rated Maximum SPL Average: 113dB
Peak: 119dB
Power Handling Average: 130W
Programme: 260W
Peak: 520W
Recommended Amplifier Power 100 - 260W @ 8 Ohms
Nominal Impedance 8 Ohms
Distortion 10% Full Power (8.94V)
2nd Harmonic
250Hz: 0.4%
1kHz: 0.28%
10kHz: 1.50%
3rd Harmonic
250Hz: 0.35%
1kHz: 0.66%
10kHz: 0.35%
1% Full Power (2.83V)
2nd Harmonic
250Hz: 0.11%
1kHz: 0.12%
10kHz: 0.51%
3rd Harmonic
250Hz: 0.15%
1kHz: 0.34%
10kHz: 0.17%
Construction
Enclosure MDF, vented and internally braced
Finish Textured black paint
Connectors 2 x 4mm gold plated binding posts
Fittings 8 x M10 bracket inserts
4 x wallplate keyhole fixings allowing landscape or portrait mounting orientations.
1 x Wall mounting plate
Dimensions (HxWxD) 394 x 294 x 215mm
(15.51 x 11.57 x 8.46”)
UPC: 750408387974
