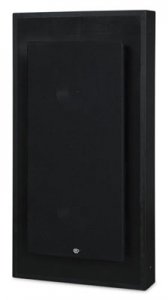

SI 760/R Baffle and Grille
Baffle and Grille for the SI 760/R in-wall speaker. Mounts into an SI 760 CAB.
Model Name: ... SI-760/R
Series: ... Signature Reference In-wall
System Type: ... In-wall 2-way Speaker
Frequency Response: ... 60Hz-20kHz (±3dB)
Sensitivity: ... 90dB (2.83V @ 1 Meter)
Recommended Power: ... 75-250 Watts
Drive Units: ... (2) 6-1/2" (165mm) Reference Aluminum Cone Woofers
(1) 1.1" (28mm) Reference Silk Dome Tweeter
Tweeter Protection: ... Yes
Swivel Tweeter(s): ... No
Crossover Frequency: ... 2,700 Hz
Crossover Slope: ... 24dB/Octave
Impedance: ... 6 Ohms
Cabinet Material/Color: ... Medium Density Fiberboard (MDF)/Black
Cabinet Finish: ... Black Enclosure
Baffle and Grille: ... Baffle Black; Grille Black or White.
Enclosure Sold Separately.
Baffle Dimensions: ... 8-1/8" W x 20-1/4" H
(206mm W x 514mm H)
Enclosure Dimensions: ... 14" W x 28" H x 3-1/2" D
(356mm W x 711mm H x 89mm D)
