Dome 5.1.2 Flax
Dome Flax, the flagship of Focal’s Home Cinema range, is now available as a 5.1.2 pack to provide you with the ultimate experience in terms of 3D sound. Enjoy the ultra-realistic sound of cinemas equipped with the innovative Dolby Atmos technology in the comfort of your own home.

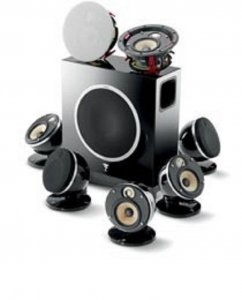

This Home Cinema system is composed of seven loudspeakers made in France: five Dome Flax satellite loudspeakers, two 300 ICW 4 In-Ceiling loudspeakers and a Sub Air subwoofer.
This 5.1.2 pack combines a compact design, optimal home integration and high-performance acoustics thanks to the addition of two discreet “In-Ceiling” loudspeakers which are easy to install thanks to the exclusive EQI system (Easy Quick Install).
Specifications
Dome Flax
• High-fidelity loudspeakers, patented Flax technology
• Focal sound with state-of-the-art technologies
•Versatile integration options for the speaker drivers: in-wall, in-ceiling, on furniture or on a stand
• Glossy lacquered aluminium body
• Made in France
Sub Air subwoofer
• Install the subwoofer wherever you want thanks to wireless technology (Wireless transmitter included)
• Glossy lacquered "Piano" finish
300 ICW 4
• Ultra-compact built-in 2-way loudspeakers
• No tools required for installation
• Square and round grilles included, as well as a protective screen
• Excellent size performance ratio
• Made in France
Dome Flax satellite
Type 2-way
Speaker drivers 4" (10cm) Flax bass/midrange
1" (25mm) Al/Mg
inverted dome tweeter
Frequency response (±3dB) 80Hz - 28kHz
Low frequency point (-6dB) 72Hz
Sensitivity (2.83V/1m) 88dB
Nominal impedance 8 Ohms
Minimal impedance 4 Ohms
Cut-off frequency 2500Hz
Recommended amplifier power 20-100W
Dimensions (HxWxD) 6 3/4" x 5 11/16" x 5 5/8" (172x144x143mm)
Wireless Sub Air subwoofer
Speaker driver (diameter) 8" (21cm)
Response at -6 dB 35Hz
Frequency response (+/-3dB) 40Hz - 200Hz
Cut-off frequency Variable 50Hz - 200Hz
Input panel Left Right / LFE
Continuous power 110W
Peak power 150W
Phase adjustment 0 - 180° inverted
Power mode ON Auto (1W) OFF (0.5W)
Dimensions (HxWxD) 16 1/8 x 14 3/16" x 6 5/16" (410x360x160mm)
Built-in 300 ICW
Type 2-way
Speaker drivers 4" (10cm) Flax bass/midrange
1" (25mm) Al/Mg
inverted dome tweeter
Sensitivity (2.83V/1m) 88dB
Frequency response (+/- 3dB) 80Hz - 28kHz
Bass cut-off frequency (-6dB) 72Hz
Nominal impedance 8 Ohms
Minimal impedance 4.5 Ohms
Recommended amplifier power 25 – 100W
Dimensions (O x depth) 7 9/16" x 4" (192x100mm)
Mounting diameter 6 1/2" (165mm)
Mounting depth 3 3/4" (95mm)
Sub Air transmitter
Range (in meter) 50 feet indoors (15m)
Sound Sampling 16 bits
Sampling frequency 44.1Hz
Coding delay (latency) 13ms
Radio transmission 2.4GHz
Frequency band ISM band
