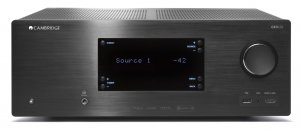

CXR120
120W AV Receiver
POWER, PRECISION, AND NETWORK CONNECTIVITY
Designed to be the hub of your entertainment system, the CXR120 is an audiophile-grade 120 Watts per channel AV amplifier that brings together all of our hi-fi know-how for a powerful, immersive home cinema experience.
We designed the CXR120 to be the heart of your digital set-up, so it contains the same state-of-the-art Cambridge Audio StreamMagic music streaming module found in our CXN network music player. From basic compressed MP3 formats to 24-bit/192kHz studio master quality FLAC and WAV files, either wired, from USB hard drives, or via Wi-Fi, the CXR120 plays them all. Add a BT100 Bluetooth receiver and it will pair with any compatible device, allowing playback in superb quality thanks to aptX technology.
The CXR120 streams from the web, is compatible with Spotify Connect and gives access to thousands of internet radio stations. There’s even support for Direct Stream Digital (DSD), allowing you to play back Super Audio CDs from your universal player.
Complementing the audio output, its visual performance is second to none. The seven HDMI input sockets cater for all your visual feeds, one of which is a front facing MHL port, making it simple to watch phone content on your big screen. With HDMI 2.0 the CXR120 upscales all 1080p signals to 4K ultra high definition, while deep colour support guarantees crisp, detailed images.
The heart of the CXR120 is its low flux audiophile-grade toroidal transformer. It ensures the amplifier delivers extremely low noise and distortion, while the output of 120 Watts in stereo mode or 60 Watts with all seven channels driven, provides more than enough power for even the most demanding speakers. Add the free iOS/Android app for control of network music playback and you have an exceptional hi-fi amplifier that will reveal previously undiscovered layers to your music.
Specifications
Power output:120 watts RMS per channel, 6 ohms (two channels driven), 155 watts RMS per channel, 4 ohms (two channels driven), 100 watts RMS per channel, 8 ohms (two channels driven), 60 watts RMS per channel, 8 ohms (all 7 channels driven)
HDMI:HDMI 2.0, HDCP 2.2, ARC supported on HDMI 1 output
Audio Inputs:3 x Analogue, Tuner (FM/AM), 7.1 multi-channel analogue direct, 2 x digital coaxial, 2 x optical
Video Inputs:6 x HDMI 2.0, 1 x MHL compatible (HDMI 1.4 - max 1080p)
Main Audio Outputs:7 Amplified Speaker Outputs, 2 x subwoofer outputs
Video Output:2 x HDMI 2.0, ARC through HDMI 1
Other connections:1 x 1/4” / 6.35mm Headphone Output (32 To 600 ohms recommended), IR emitter input, IR receiver input, 2x IR outputs
2 x 12V trigger outputs, 1 RS232C, 1 IEC type mains inlet, Wi-Fi module, RJ45 Ethernet, BT100 Bluetooth (BT100 not supplied), Spotify Connect
Audio formats (network streaming and USB HDD):ALAC, WAV, FLAC, AIFF, WMA, MP3, AAC, HE AAC, AAC+, OGG Vorbis (16-24 bit, 11.025-192kHz), DSD (via HDMI)
Max power consumption:1000W
Standby power consumption:<0.5W
Dimensions (H x W x D)*:165 x 430 x 420mm (6.5 x 16.9 x 16.5’’)
