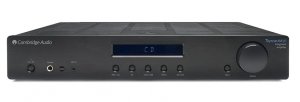

TopazAM10
Integrated Amplifier
The AM10 is a high performance amplifier with fantastic value. It features a front facing 3.5mm jack input, an integrated phono stage for turntable connection, and it has 35 watts of power per channel. Functionality and performance in one box.
Power and Control
The Topaz AM10 has outstanding balance and control for an amplifier in this class thanks to serious hi-fi credentials - and it's powerful, with an impressive 35 watts per channel.
SOUND FIRST DESIGN
As well as impressive power, the AM10 follows our “Sound First" design principles. We've maximised audio quality and minimised cost and clutter. In the AM10 that means we use toroidal transformers, usually only seen in high-end separates, to more accurately channel that extra power. And we've used an all metal case to minimise vibration and maximise music purity.
TOROIDAL TRANSFORMER
We’re advocates of premium components so rather than reserving them just for our top of the line equipment we like to use them wherever we can. The extra power reserves a toroidal transformer delivers means not only a far better bass response, but also a deeper, richer reproduction of music across the board. Watch the video opposite to find out more.
Specifications
Power output35 watts (into 8 Ohms)
Frequency response(-3dB) 5Hz - 50kHz
S/N ratio (ref 1w)>82dB (unweighted)
THD (unweighted)<0.01% @ 1kHz, 80% of rated power
< 0.15% 20Hz - 20kHx, 80% of rated power
Max. power consumption260 Watts
Input Impedance47k Ohms
Power amp damping factor>50. Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 10kHz
ColourBlack
Dimensions (WxHxD)76 x 76 x 340mm
