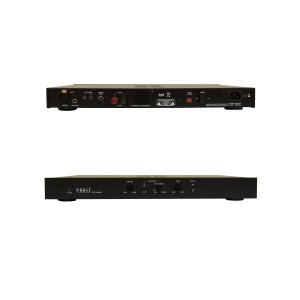

P350 Amplifier
P350 Class-G high current subwoofer/full range mono block amplifier
The P350 is the companion amplifier to Phase Technology custom in-wall subwoofer systems but its use is not limited to only subwoofer applications. It also has the flexibility of operation as a full range high current, high performance, mono-block audio power amplifier.
Amplifier Power: 350 W RMS @ 4 Ohms, 700 W peak, 225 W RMS @ 8 Ohms, 400 W peak”
Crossover Frequency: Low Pass 40 – 120 Hz adjustable @ 24 dB/octave
LFE Frequency Response: 20 – 500 Hz
Full Range Response: 10 Hz – 20 kHz +0/-.25 dB, 5-60 kHz +0/-3 dB
Low Frequency EQ: -3 dB to +6 dB @ 30 Hz
Inputs: 1 Gold-plated RCA connector, 1 balanced XLR
Protection Features: Soft Clipping (Subwoofer mode), Short Circuit/Overload, Thermostatic variable speed fan cooling, Thermal overload protection, Transformer thermal protection, Over current protection
Max Current consumption 120V: 3A @ 8 ohms, 5.5A @ 4 ohms continuous
Dims: Height: 2, Width: 17.25, Depth: 13.25
