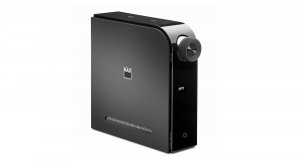

NAD D 1050 USB DAC
MAGIC FROM A DAC, THE D 1050
The NAD D 1050 USB DAC is the best way to add Computer Audio and HD Digital to your component hi-fi system. Both the digital and the analog circuits are highly optimized and based on techniques developed over 40 years of NAD audio engineering excellence. The digital inputs cater to many different digital sources. SPDIF inputs support balanced AES/EBU, coaxial and optical connectors. The USB input is very special; its asynchronous operation mode uses the D 1050’s high precision clock to control the output of the connected USB device for lowest possible jitter. It also supports USB Audio Codec 2.0 allowing 192kHz signal transmission.
The digital processing of the D 1050 features Delta/Sigma architecture with active oversampling filters. This technique effectively reduces out of band noise while maintaining linear phase response and virtual elimination of filter ringing in the pass band. This assures detailed and extended high frequency response while taking full advantage of the extended response of recordings sampled at 88.2kHz and above.
We pack a lot of premium high spec parts inside the D 1050. But premium parts need optimal implementation to get the actual performance they promise. This is where NAD expertise with both digital and analog circuits shows its true value. Ultra short impedance-controlled signal paths are made possible by multi-layer circuit boards and micro-miniaturized surface mount components soldered with lead-free high silver content solder. These details all contribute to the remarkable performance of this advanced DAC.
Analog outputs are fixed and include both balanced and single-ended connections. We also include a premium quality headphone amplifier output that includes a high quality volume control. Output impedance is extremely low, minimizing the effect of connecting cables and keeping noise vanishingly low.
D 1050 USB 24/192 DAC
Asynchronous 24/192 USB input
2 x Optical, 2 x Coaxial SPDIF Inputs
Balanced XLR and Single Ended Outputs
Discrete High Performance Headphone Amplifier
Remote Power Supply
